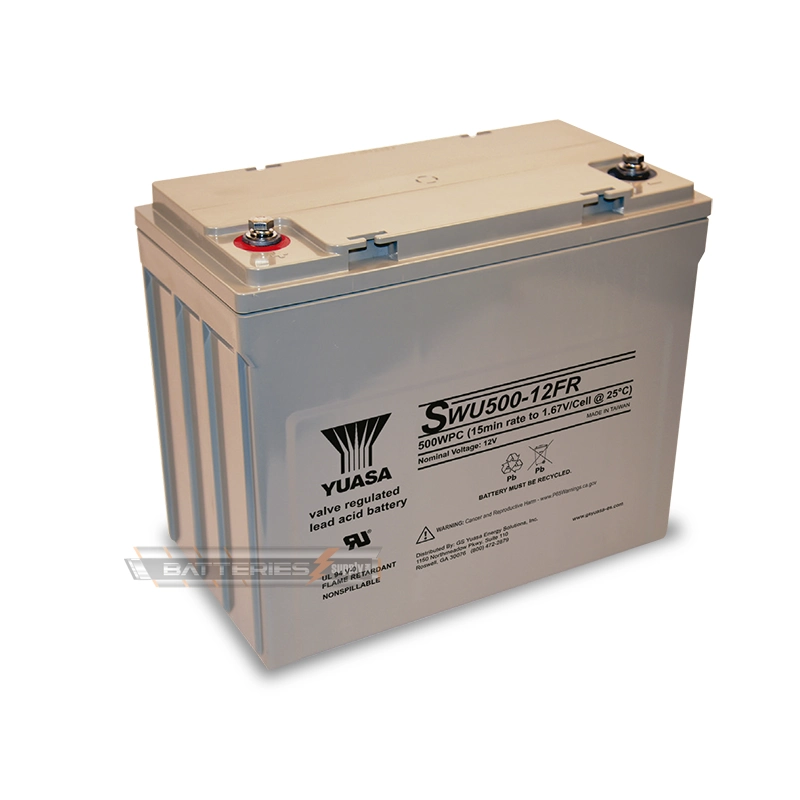

YUASA SWU500-12FR 12V 150Ah, 500Wpc
Proven in the real world, the SWU Series of UPS batteries provides security and long life in extremely hot climates where other VRLA batteries just don’t survive. The SWU technology utilizes GS Yuasa Energy Solutions’ proprietary HT X Alloy™ and active material additives. The SWU Series is the most cost effective battery solution over the total life cycle and for initial installation in your network.
LONG LIFE DESIGN
- HT X Alloy™ extends life in high temp applications
- Primary lead for long life
- Low calcium alloy for long life
- Additives to maintain compression
- Designed to control charging current as temperature increases
- No thermal runaway
- Epoxy sealed terminals to prevent post leaks
- Rugged ABS cases to minimize handling damage
- AGM Technology enables Spill Proof Operation
- High gas recombination efficiency
COMPLIANCE
- UL 1989
- IEC 60896-21+22
- UL 94V-0
- Recommended Float Charge Voltage: 13.65V +/- 0.15V
- Recommended Temperature Compensation: 3mv/o
- C/cell
- Internal Resistance: Approximately 3.2 mΩ measured with 1kHz AC bridge
- Terminal Torque: 45 in.lbs.
- Maximum Continuous Discharge Current: 405A
- Maximum 5 Second Continuous Discharge Current: 810A
APLICATIONS
- UPS
- Medical. Hospitals and Testing Laboratories
- Emergency Power Supply
- Electric starting
- Communications Networks
- Data Centers
- Critical Mison
